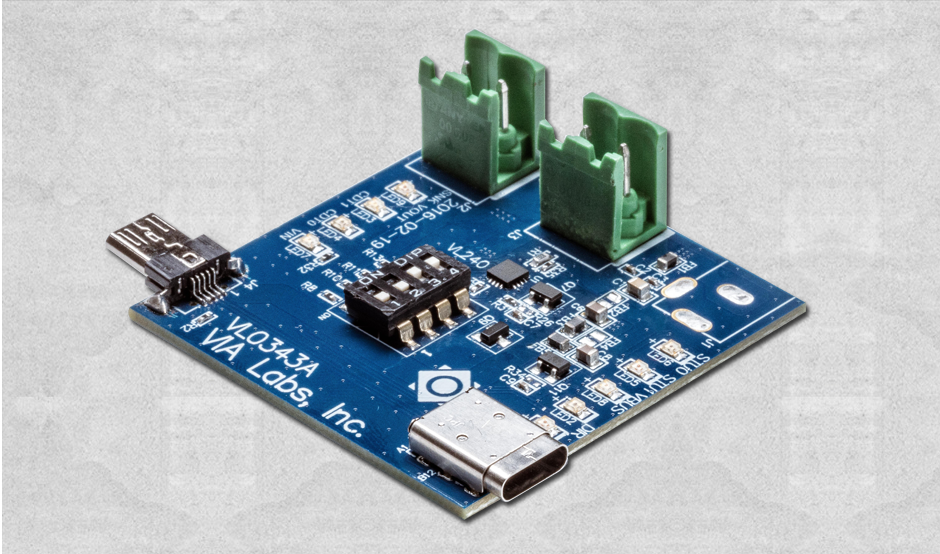

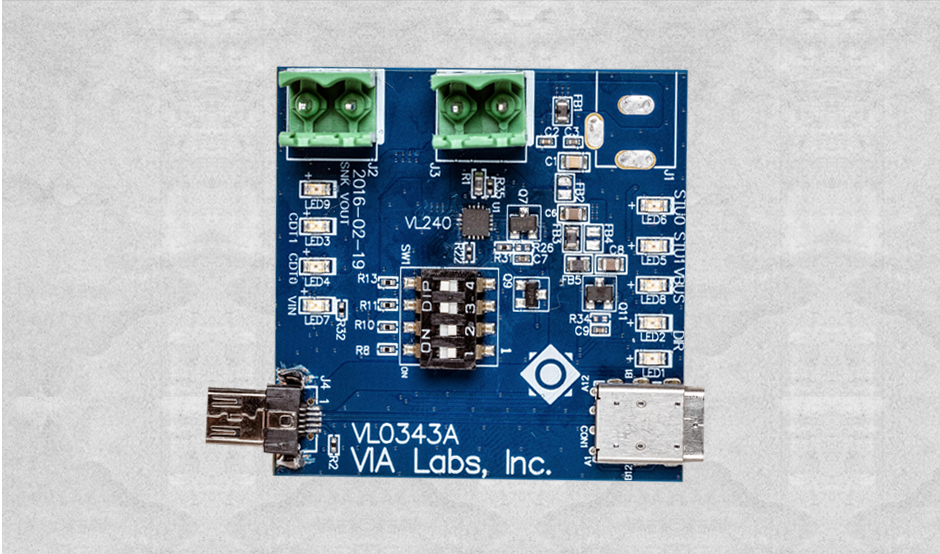

VP240 - USB-C™ DRP Controller

EOL Products

Description




The VIA Lab's VP240 is an USB Type-C DRP CC controller which provides the electrical measurement to support Type-C CC controller features. The VP240 could be configured as DFP mode, UFP mode, DRP with Try.SRC mode or DRP with Try.SNK mode. The VP240 supports output signals for VBUS source and sink switches. The VP240 also provides the automatic starting signal for VBUS sink switch when dead battery happens.

The VP240 also has the selection to control VBUS power capability and the VBUS power capability detection for sink side. The cable orientation identification can be used to control the USB super speed data switch. And the attached status identification provides the information of IC status.

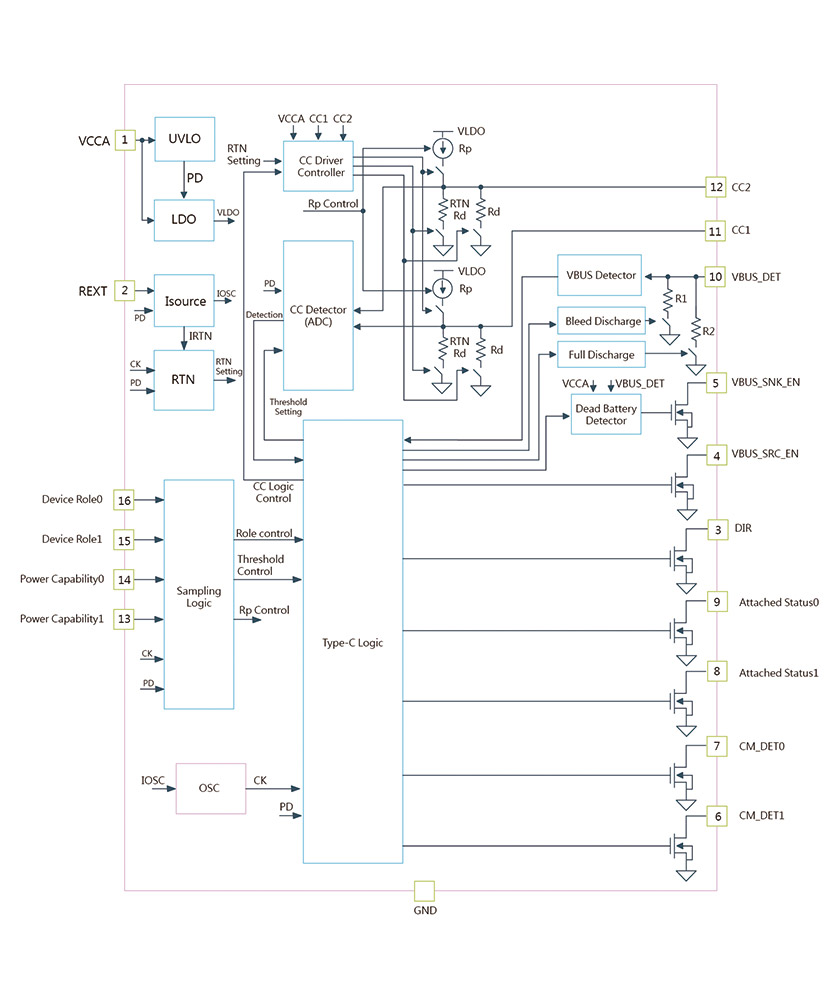

Block Diagram

Key Features

  • USB Type-C™ Specification 1.2
  • Backward Compatible with USB Type-C Specification 1.1
  • Supports Up to 3A of Current Advertisement and Detection
  • Mode Configuration
    – Host Only – DFP/Source
    – Device Only – UFP/Sink
    – Dual Role Port Strongly Prefers Source Role – DRP with Accessory and Try.SRC Support
    – Dual Role Port Strongly Prefers Sink Role – DRP with Accessory and Try.SNK Support
  • Channel Configuration (CC)
    – Attach/Un-Attach of USB Port Detection
    – Cable Orientation Detection
    – Role Detection
    – Type-C Current Mode (Default USB, 1.5A, 3A)
  • VBUS Detection and Auto Discharge
  • Cable Detection and Direction Control for External Switches
  • Attached Status Identification
  • Output Control Signals for Vbus Source/Sink Switches
  • Dead Battery Support (Sink Mode Support when No Power Applied)
  • Under-Voltage Lock Out Protection
  • Supply Voltage: 2.7V to 5.5V
  • Low Current Consumption
  • Industrial Temperature Range of -40 ℃ to 85 ℃
  • Available in 16-pin QFN package
