VL108 DP Alt-mode & 3-port USB PD 3.1 Controller

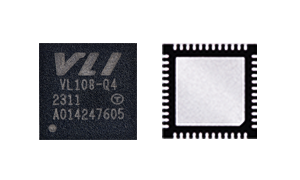

Description

VIA Lab's VL108 is a highly integrated USB PD 3.1 and DP Alt-mode controller featuring support for the new Extended Power Range (EPR) charging capabilities that extends USB Power Delivery's maximum capacity from 100W to 240W. VL108 is intended for USB-C peripherals and has been optimized for use in USB-C multi-function docks with charge-through capability.

With the integrated USB-C charging UFP, VL108 can enable video output from a host system using DP Alt-mode or USB4 DP Tunneling mode while simultaneously providing power to the host if suitable external power is available. VL108 also features two integrated USB-C DRP DFPs that can connect to a USB-C power adapter for charging functionality, a USB-C device for data transfers, etc. Either DFP port can also provide power for charging a host system on a first-plugin-first-served basis. All ports support the PD3.1 EPR specification, enabling up to 48V at 5A (240W). VL108 has an innovative auto-standby feature that automatically enters power-saving mode when the interface is idle.

With a built-in trimmed RC oscillator, linear voltage regulators, and Vbus voltage and current detectors, VL108 can be powered from Vbus while also monitoring for abnormal power behavior. VL108 supports up to 17 GPIO pins and is available in QFN 60L (7x7x0.85 mm) in the two DFP configuration and QFN 48L (6x6x0.85 mm) with one DFP.

Block Diagram

Key Features

  • CC Logic & PD 3.1 Engine supporting one charging UFP and two DRP DFPs
    - Compliant to USB Type-C Cable and Connector Specification Revision 2.1
    - Compliant to USB Power Delivery Specification Revision 3.1 Version 1.3
    - Integrated Type-C transceivers, supporting one charging UFP and up to two DRP DFPs
    - Built-in pull-up/pull down resistors, including Rp, Rd
    - Built-in Vconn power switch
  • DP Alt-mode Configuration
    - Compliant to VESA DisplayPort Alt Mode on USB Type-C Standard Version 2.0
    - DP mode Discovery/Enter/Exit; DP configure, status update, source/sink connection detection
  • USB-C Charging UFP Capability
    - Charging connected PD hosts once external power is available
    - Support Provider and Consumer roles
    - Support PD Power Rule up to EPR 240W
    - Support dead battery charging and Fast Role Swap
    - First set of UFP CC pins (CC1U, CC2U) with built-in Rd resistors designed for bus-powered applications
    - Second set of UFP CC pins (CC1U_S, CC2U_S) without built-in Rd resistor designed for self-powered applications
  • Two USB-C DRP DFPs Capability
    - Support Provider and Consumer roles
    - Support PD Power Rule up to EPR 240W as Sink and 15W as Source
    - Either DFP port can charge host by first-plugin-first-serve basis, the other port is then set to source mode only
    - Built-in D+/D- Charging ePHY for chargers using D+/D- as protocol handshake then converted to PD protocol
  • USB Interface and USB Billboard Device
    - USB Billboard compliant to USB Device Class Definition for Billboard Devices Revision 1.22
    - Integrated in-house USB 2.0 Full-speed PHY
  • Fast 8051 Macro Cell 80C32-Compatible Microcontroller
    - Standard 1T 8051 instruction set with embedded Mask ROM and SRAM
    - Support dynamic code swap for flexible FW coding
    - Support external SPI flash or sharing SPI flash with VLI Hub controller for firmware upgrade
    - Support FW update through USB Billboard and I2C slave interface
  • Built-in Oscillator, Voltage Regulators, Voltage Detector, and Current Detector
    - Built-in trimmed RC oscillator
    - 5.0V-to-3.3V LDO and 3.3V-to-1.8V LDO
    - Vbus Voltage Detector and Vbus Current Detector for monitoring power safety
  • Smart Auto-standby
    - Automatically entering deep power saving mode when connected interface is in idle state
  • GPIOs for Special Function and Control
    - 17 GPIOs on QFN60 and 13 GPIOs on QFN48 for application customization
    - One I2C master interface shared with GPIO and one dedicated I2C slave interface
  • Physical
    - QFN 60 green package (7x7x0.85 mm) for VL108-Q6
    - QFN 48 green package (6x6x0.85 mm) for VL108-Q4
  • Certification
    - USB-IF PD Certification TID: 7992
    - USB-IF PD EPR Certification TID: 9064
  • Applications
    - USB-C charge through dongle or Multi-function dongle with any port charge through
